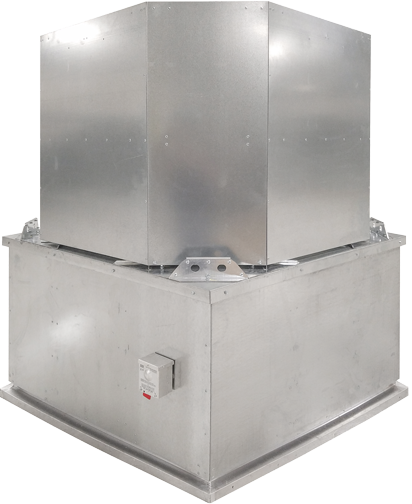

VXRPUD
DIRECT DRIVE UPBLAST PROPELLER EXHAUSTERS
Air volume: 1 - 80000 cfm Maximum SP: 2" wg. @ standard air densityFEATURES & BENEFITS
- Fan construction G90 galvanized steel
- Wind band channels provide lateral rigidity
- Aluminum butterfly dampers
- Water gutter to drain water and melting snow and ice
- Steel propellers
- Non-overloading design for safe operation
- Precision balanced for smooth vibration free operation
- Removable wind band and shaft wrapper
- Integrated 4 point lifting lugs
- Disconnect Switch
OPTIONS
- Roof curb
- Base with access door
- Outlet guard
- Aluminum propeller
- Magnetic butterfly damper latch
ADDITIONAL IMAGES
CERTIFICATIONS
Models VXRPUD-20 thru VXRPUD-72 are ETL Listed under file number 102628244PRT-001 and comply with UL705 (electrical) Standards and CSA Std C22.2, No 113.
Catalog #110V
September 2017
