Certifications
Ventilation Direct's Rooftop Unit is ETL-listed to the following standards: Standard for Safety Heating and Cooling Equipment ANSI/UL 1995, CSA 22.2 no. 236; American National Standard/CSA Standard for Gas Unit Heaters and Gas-Fired Duct Furnaces ANSI Z83.8-2013, CSA 2.6-2013.
Ventilation Direct's Rooftop Unit has been tested in accordance with the following standards: ANSI/AHRI Standard 340/360 - 2007, ANSI/ASHRAE Standard ANSI/ASHRAE 37 2009.
Ventilation Direct's
Rooftop Unit
Helping Buildings Breathe,
One RTU at a time

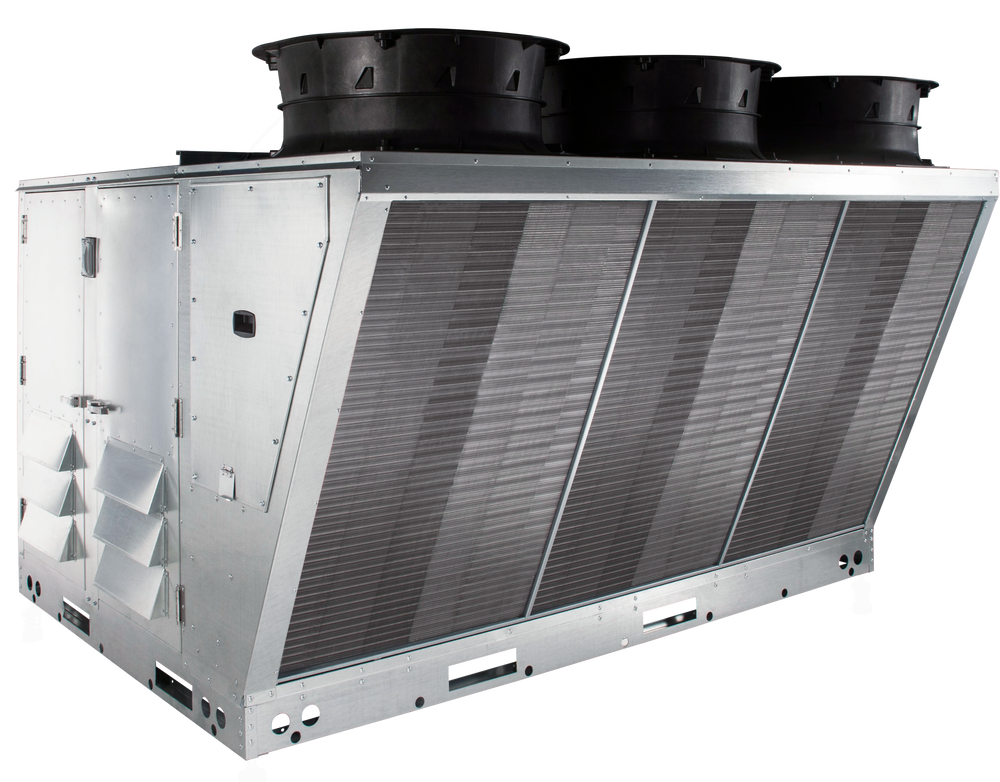

Rooftop Unit (RTU)
System Overview
Fast Lead times on VXRTU! Standard units can ship in as fast as 1-2 weeks.
Please contact us with your specific requirements and location for a price and lead time quote.
Ventilation Direct's Rooftop Unit (RTU) is the ideal HVAC solution offering exceptional energy savings and unprecedented comfort and humidity control.
Ventilation Direct's Rooftop Unit is designed from its core to conserve energy and save on operating costs. Its rare earth magnet inverter scroll compressor eliminates excessive cycling, premature unit aging, inefficient hard starts, and unnecessary energy consumption. Modulating technologies allow it to deliver the highest efficiencies at part-load conditions.
Every Ventilation Direct Rooftop Unit is equipped with 24/7 remote system monitoring, with no monthly subscription fee. This allows users to make remote unit adjustments, diagnose potential faults, and access system analytics from any internet-connected device.
Ventilation Direct offers unmatched factory service and technical support through its rapidly expanding nationwide service team. Each local service technician undergoes extensive in-house training to ensure your needs are quickly met and problems are thoroughly addressed. Since the Rooftop Unit is a fully standardized equipment line, service techs are able to stock most replacement parts on their trucks, eliminating long lead times often associated with service visits. Additionally, Ventilation Direct's Rooftop Unit is designed with service in mind, incorporating several convenience features to make support visits as smooth and efficient as possible.
Ventilation Direct’s Rooftop Unit is the ideal solution for a wide variety of applications, including grocery, restaurants, schools, senior living and apartments, grow facilities, laboratories and clean rooms, hotels, warehouses, natatoriums, paint booths, and many more.
Ventilation Direct's Rooftop Unit achieves an impressive 20.2 IEER rating (Integrated Energy Efficiency Ratio) which is over 1.5x the ASHRAE 90.1-2016 IEER standard. Designed with the future in mind, it is poised to exceed rising IEER standards for years to come.

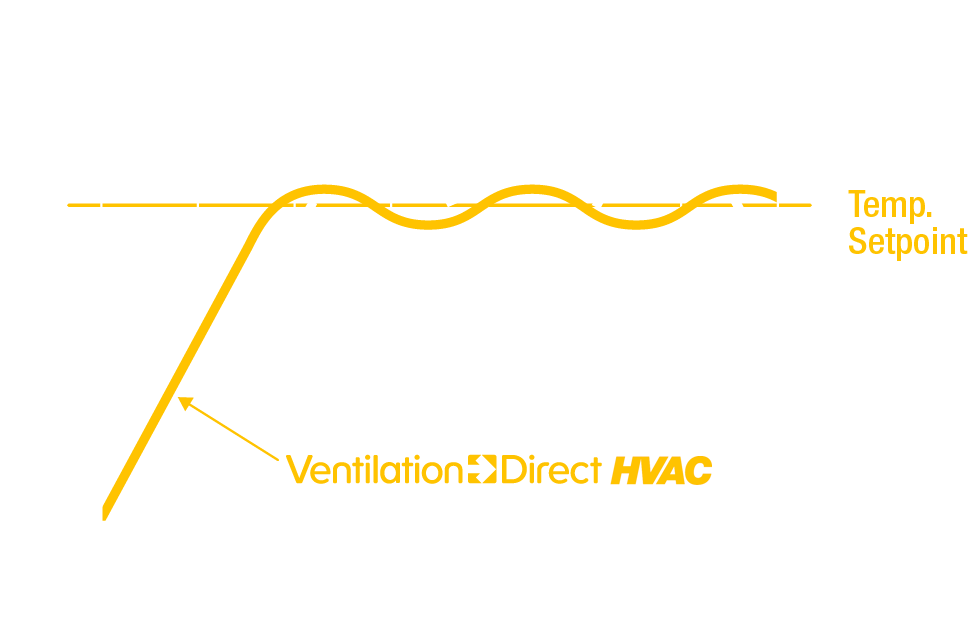

Ventilation Direct's Rooftop Unit contains fully modulating refrigeration and optional hot gas reheat components that deliver the exact amount of air requested at the desired temperature and humidity. Variable speed components allow the unit to adjust its heating and cooling capacity to match the required load. This provides a consistent temperature throughout the space and avoids large temperature swings often associated with single stage equipment.
Standard Features & Benefits
- Danfoss variable speed inverter scroll compressor with VFD
- Mixed air temperature/humidity sensor measures outdoor, return, mixed, discharge and space air
- 2" metal mesh outdoor air filters
- Low leakage outdoor air damper, includes integrated louver and bird screen assembly
- Wide staggered indoor coil design
- Electronic expansion valve modulates 0-100% providing automated superheat control and monitoring and preventing liquid migration
- Stainless steel sloped condensate drain pan, includes float switch and exceeds ASHRAE 62.1 standards
- Natural gas indirect fired furnace with constant 81% efficiency through modulation
- Variable speed direct drive supply fan
- Variable speed outdoor fans with EC motors, 10:1 turndown
- Double wall, G-90 galvanized steel insulated with 2" thick, foil-faced, R13 closed cell foam or 1" thick, R4.3 fiberglass board
- Removable hinged access doors
- User friendly human machine interface (HMI) for easy programming and data measurements
- Integrated controls with multiple PID loops to maximize energy efficiency
- Fully insulated controls cabinet
- Proprietary cloud-based building management system
The
Superior Solution
for Your Space
Perfect for the following applications and many more!
Restaurants
Grocery
Schools
Senior Living /
Apartments
Grow
Facilities
Laboratories /
Clean Rooms
Hotels
Warehouses
Natatoriums
Options
- Up to 4" additional filtration - MERV-8, 13, 15, and HEPA
- Up to 10-row coil
- Fully modulating hot gas reheat coil; allows for precise humidity and capacity control
- 90% high efficiency modular heating
- Propane, heat pump, or electric heat modular heating
- VFD or ECM supply fans
- Fully integrated, BAS, or DDC controls
