Additional Information:

Approvals

Grease-Stop Solo Filter is ETL Listed under file number 105195378COL-001 and complies with Standard UL1046 and ULC-S649, NSF Standard #2, NFPA 96 and IMC

Grease-Stop Combo Filter is ETL Listed under file number 105195378COL-001 and complies with Standard UL1046 and ULC-S649, NSF Standard #2, NFPA 96 and IMC

Captrate Solo & Combo Filters

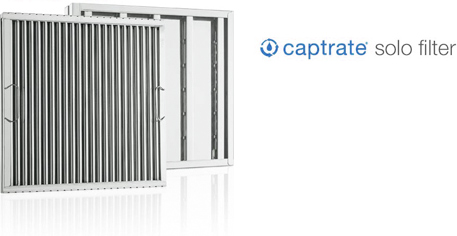

Captrate Solo Filter

Captrate© Solo Filter is a single-stage filter featuring a unique S-Baffle design in conjunction with a slotted rear baffle design to deliver exeptional filtration efficiency of single-stage devices.

Benefits include reduced fire hazard and maintenance associated with grease build-up in hood plenums, duct work, fan assemblies, rooftops and adjacent surfaces when using Solo filters. The Solo filter is constructed of 430 stainless steel and sized to fit into standard 2-inch deep hood channel(s).

Single unit assembly design does not require any components to be separated for cleaning and maintenance. Simply wash using a dishwasher or soak using a commercial degreaser.

Captrate Combo Filter

Captrate© Combo Filter uses the latest technology in multi-stage grease filtration, delivering unparalleled efficiency for restaurant hood systems.

The first stage consists of an optimized S-baffle designed to remove and drain the larger grease particles. The second stage features a packed-bed of porous ceramic media, designed to capture the smaller grease particles associated with commercial cooking. The combined result is a front-end filtration solution delivering unparalleled grease removal efficiency for restaurant hood systems.

The Captrate© Combo Filter is available for new kitchen hoods and can also be retrofitted into most existing ventilation systems. It will substantially reduce cleaning, maintenance cycles and attendant expenses, providing greater overall cost savings than other grease capture devices or systems on the market today.

Captrate© Solo & Combo Filter Sizes

Size
(h x w)
Dimensions
(h x w x d)
Area
(sq. ft.)
20 x 20 19 5/8" x 19 5/8" x 1 7/8" 2.28
20 x 16 19 5/8" x 15 5/8" x 1 7/8" 1.78
16 x 20 15 5/8" x 19 5/8" x 1 7/8" 1.78
16 x 16 15 5/8" x 15 5/8" x 1 7/8" 1.39
