VXWP
DIRECT DRIVE AXIAL WALLMOUNT FANS
Air volume: 1 - 6200 cfm Maximum SP: 1.25" wg. @ standard air densityFEATURES & BENEFITS
- OSHA rear guard standard
- ODP & TEAO 115 & 230 volt single phase motors
- All motors are thermally protected
- All fans have PSC & ECM motor options
- Mounted variable speed control for PSC & ECM
- Steel propellers are statically & dynamically balanced
- Steel propellers are mounted directly to the motor
- G90 steel housing & motor plate construction
- Mounted disconnect switch
OPTIONS

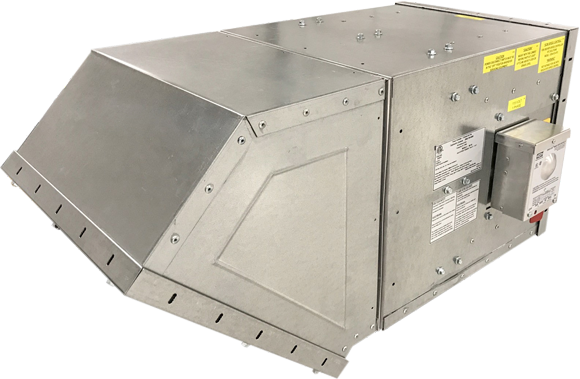

- Weather hood
- Weather hood screen
- Wall mounting collars
- Mounted aluminum gravity damper

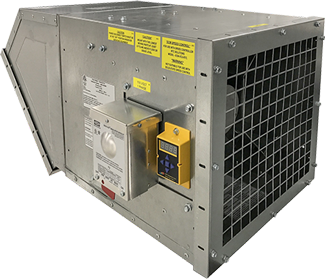

ADDITIONAL IMAGES
CERTIFICATIONS
Models VXWP10 thru VXWP20 are ETL Listed under file number 102628244PRT-001 and comply with UL705 (electrical) Standards and CSA Std C22.2, No 113.
Catalog #110V
September 2017
