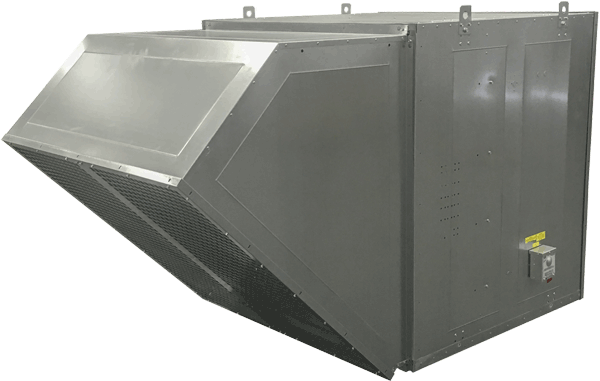

VXWPD
DIRECT DRIVE AXIAL WALLMOUNT FANS
Air volume: 1 - 80000 cfm Maximum SP: 2" wg. @ standard air densityFEATURES & BENEFITS
- Steel propellers mounted directly on motor shaft
- All propellers are statically and dynamically balanced
- Heavy gauge G90 steel housing/frame construction
- Riveted frame assembly for precise part alignment
- Precision spun orifice for smooth performance
- Disconnect Switch
OPTIONS
- Heavy duty gravity dampers
- Heavy duty motorized dampers
- Wall box
- Rear guard
- Weather hood
- Weather hood screen
- Cast aluminum propellers
CERTIFICATIONS
Models VXWPD20 thru VXWPD72 are ETL Listed under file number 102628244PRT-001 and comply with UL705 (electrical) Standards and CSA Std C22.2, No 113.
Catalog #110V
September 2017
